ObsidianWire®

LP Ultimate JP

'The Ultimate' Wiring for Les Paul® // 'JP' Mod

Regulärer Preis
$391.00 NZD
Regulärer Preis
Verkaufspreis
$391.00 NZD
Versand wird beim Checkout berechnet

Super Easy, Solder-less Install
Features:

  • Selectable '50s' // 60s Plus' Wiring
  • Dual SC // Coil Splitting
  • 'Series' Mode Switching
  • Phase Switching
  • Solder-less Install
  • Fits Gibson Les Paul
  • Fits Epiphone with Adjustments

* REQUIRES FOUR CONDUCTOR PICKUPS


FAST SHIPPING

5 YEAR WARRANTY

&
&
&
ObsidianWire Pro-Wired Les Paul Switch
&

'The Ultimate' for Les Paul

  • Selectable '50s' // '60s Plus' Wiring

    Select between 'Vintage 50s' and Obsidian '60s Plus' wiring, for each pickup for ultimate tone shaping.

    Learn More
  • Dual SC // Coil Splitting

    Turn your humbuckers in to single coils for lower output Strat & Tele like sounds. One easy control splits both pickups.

    // Operated by the Neck Volume

  • 'Series' Mode Switching

    SERIES // PARALLEL SWITCH

    Play your neck and bridge pickups in Series for a fuller output sound with a boosted midrange.

    // Controlled by Neck Tone Control

  • Phase Switching

    Play your neck and bridge pickups out of phase for those classic Les Paul sound made famous by Brian May and Jimmy Page.

    // Controlled by the Bridge Tone Control

Details

Description

ObsidianWire solderless install logo

Super Easy, Solder-less Install
All Obsidian® Pro-Wired Electronics are super easy to install, and allow for solder-less pickup changes with Obsidian® Plug, Play & Enjoy connectors.

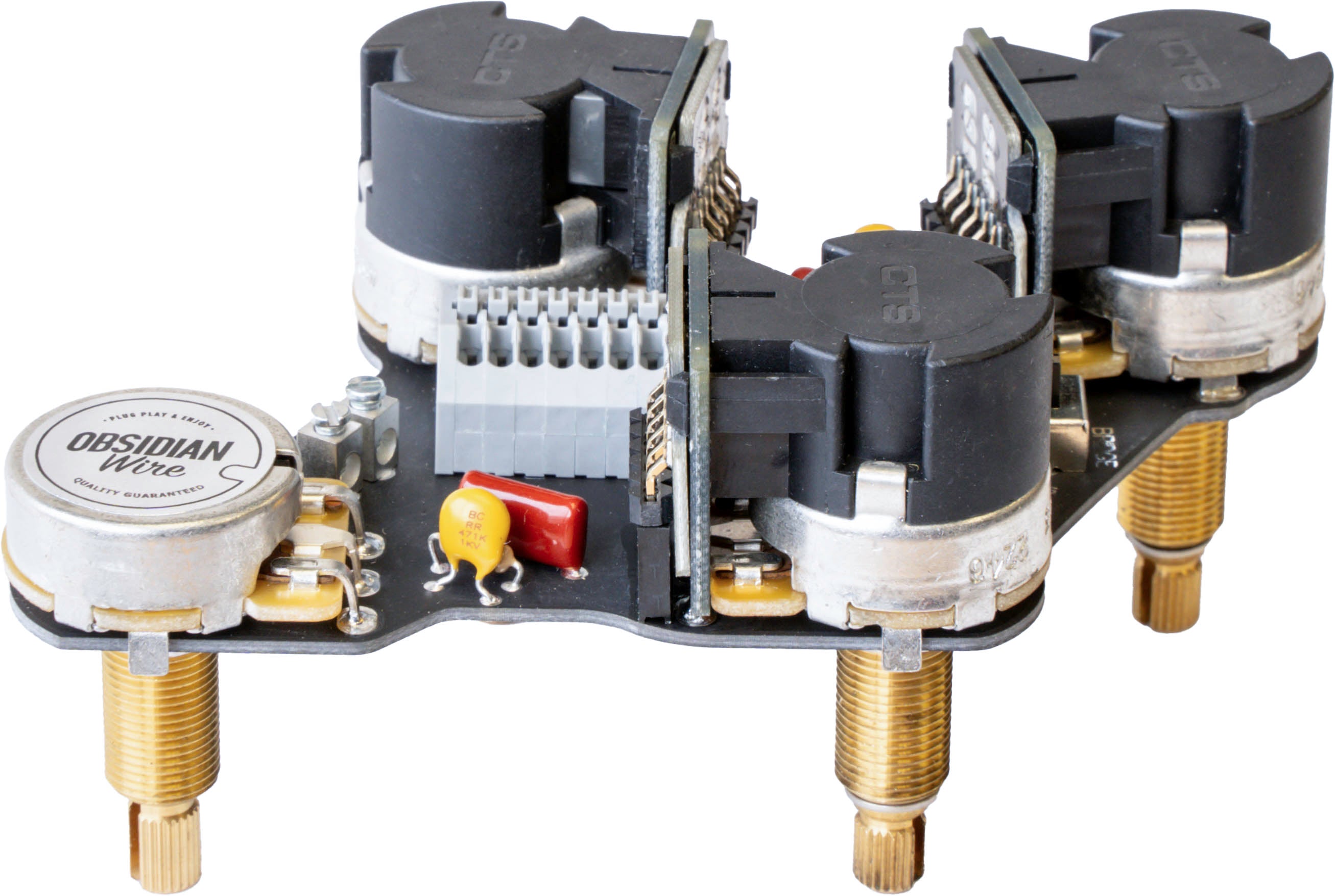

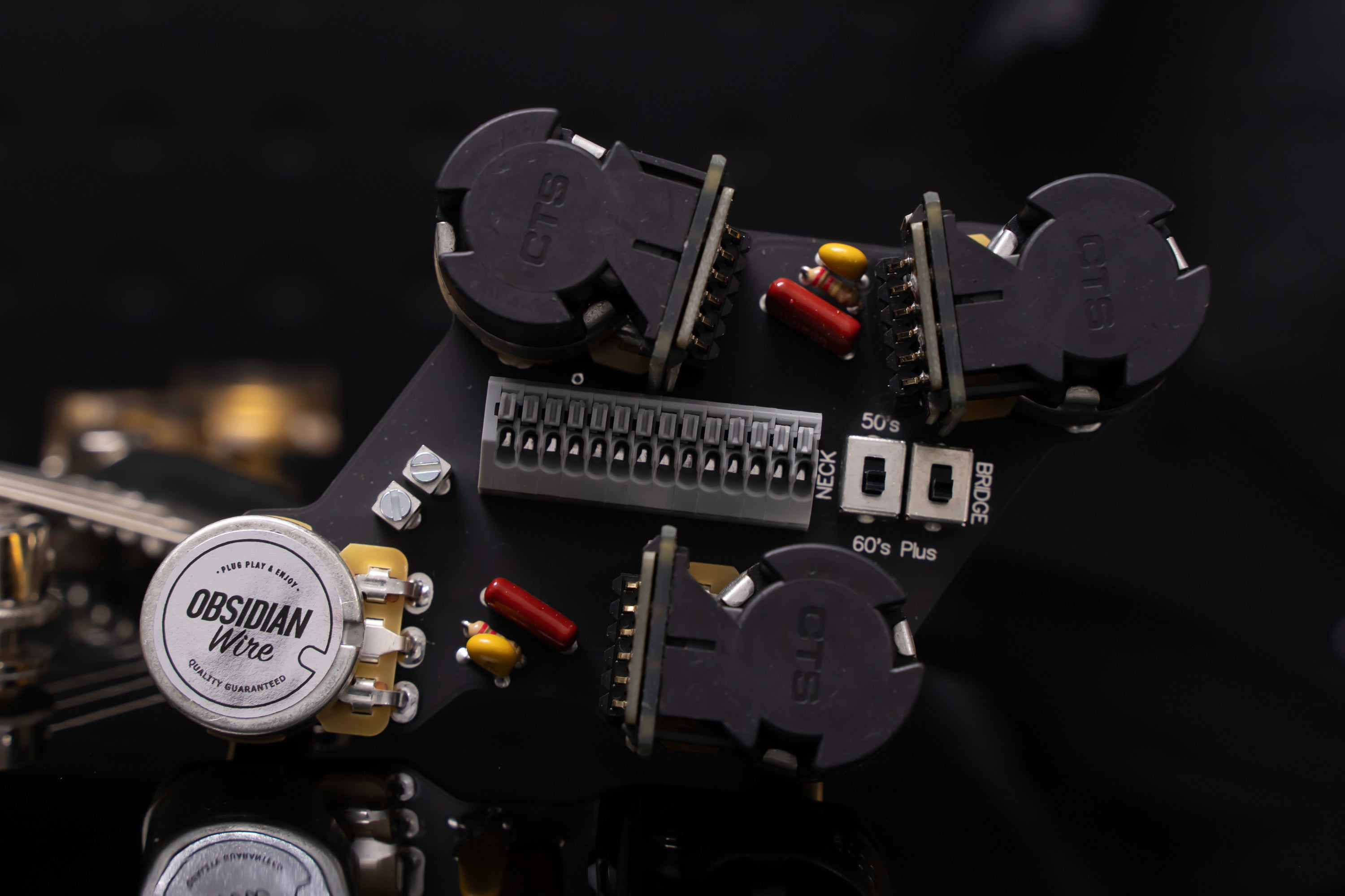

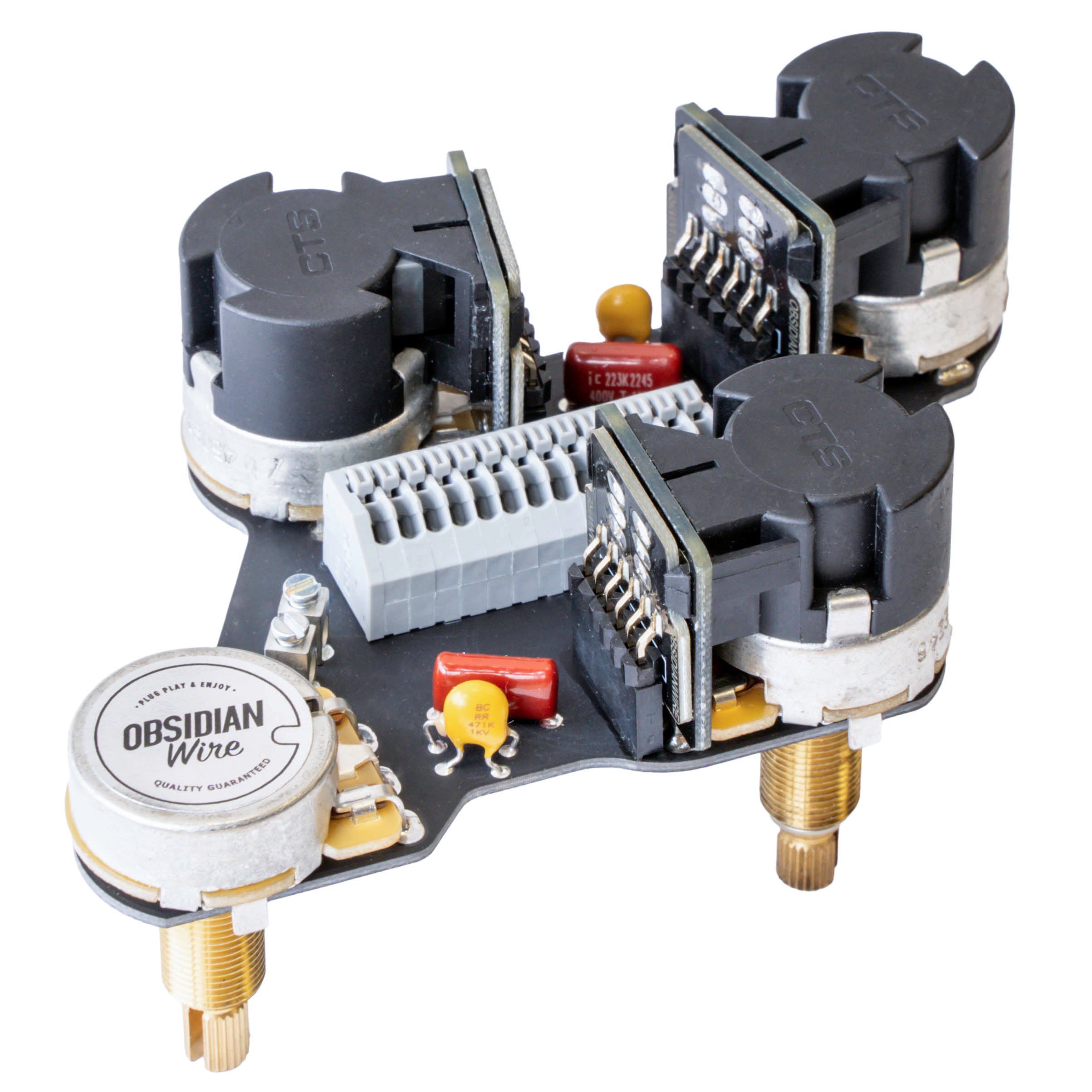

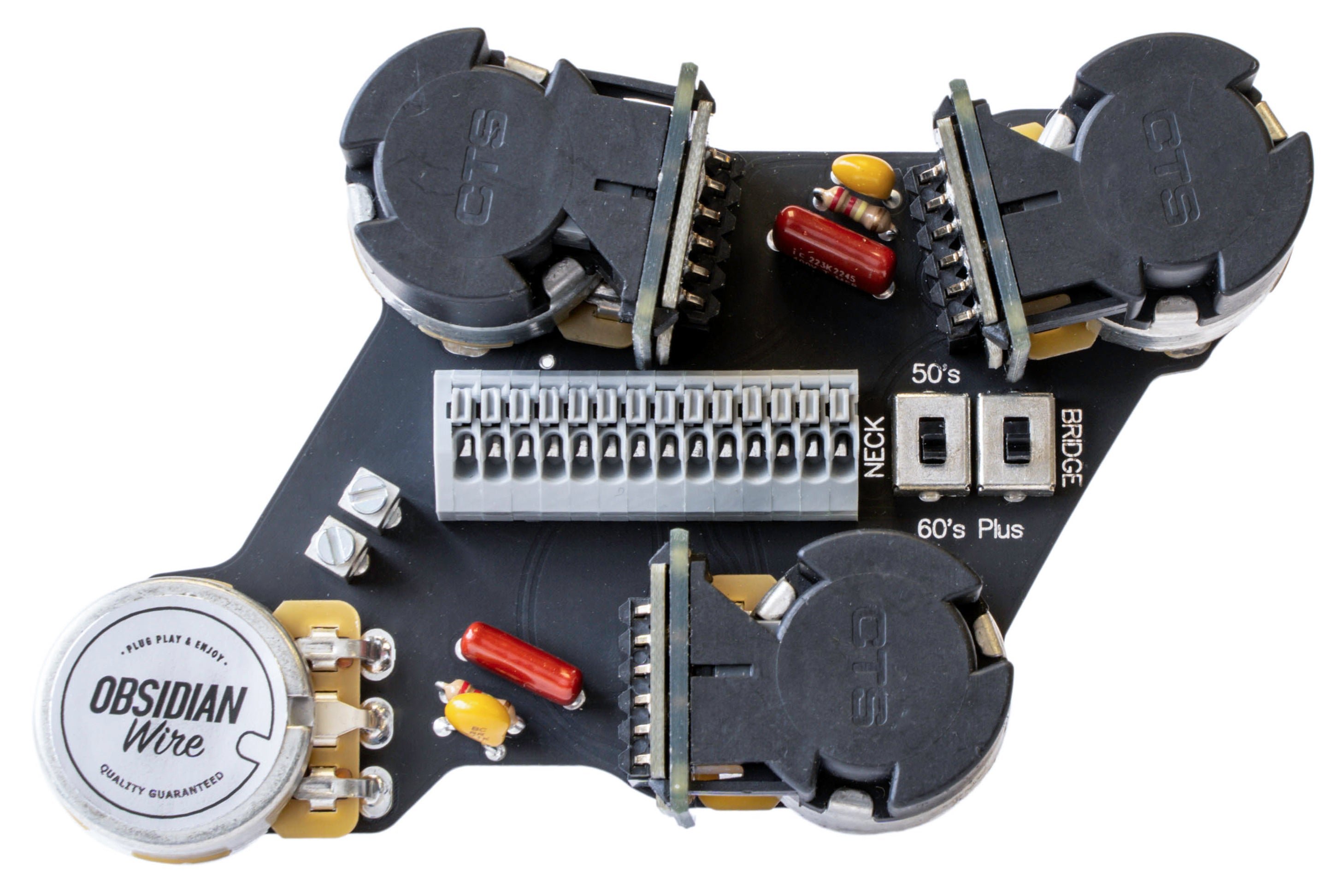

'The Ultimate' Wiring for Les Paul® // 'JP' Mod

'The Ultimate' wiring for Les Paul® is a full featured and comprehensive wiring upgrade, designed to give you all of the best Les Paul sounds in one setup.

Based on the wiring used by Jimmy Page, but even more versatile.

The extra sounds are activated using three push / pull pots, so no extra mods are required to the body of your guitar.

  • REQUIRES FOUR CONDUCTOR PICKUPS

FEATURES:

'VINTAGE 50'S' MODE

Allow for some treble roll off when you roll back your volume control for an easy bridge between perfect warm cleans and searing leads.

The 'Vintage 50's' wiring mod is a super popular Les Paul wiring upgrade that reverts your stock LP wiring back to the glory days, and the beginning of the Vintage Les Paul. This is our most popular and personal favorite Les Paul wiring.

'60'S PLUS' MODE

Prevent treble loss when you roll back the volume for greater clarity and cut through at reduced volume levels.

The Obsidian® '60's Plus' wiring is made for clarity and cut through with an improved circuit that will help you retain treble at all volume levels.

For a full run down on different Les Paul wiring types, check out our full guide - Click Here

DUAL SC (COIL SPLIT)

Turn your humbuckers in to single coils, and back again
To add true versatility to your guitar we build in Obsidian® Dual SC, allowing you to split your humbuckers in to single-coils for lower output, more dynamic tones.

// Controlled by Neck Volume Control

'SERIES' MODE SWITCHING

Play your neck and bridge pickups in Series for a fuller output sound with a boosted midrange.

// Controlled by Neck Tone Control

NOTE: This also mutes the bridge/lead pickup when played alone

PHASE SWITCHING

Play your neck and bridge pickups out of phase for those classic Les Paul sound made famous by Brian May and Jimmy Page.

// Controlled by the Bridge Tone Control

Note - NOISE

The huge variety of switching options is achieved by slicing, dicing and re-arranging the pickup coils, which means that not all switch positions are hum cancelling. Please expect 60's cycle hum with some switching combos and settings.

Specs

BUILT IN HOUSE WITH

  • Potentiometers: ObsidianWire® Custom CTS® 500k Pots (+/-10%) Split Shaft / 24 Spline
  • Capacitors: (0.022uf) (+/-5%)
  • Switch: ObsidianWire® Pro-Wired Toggle Switch
  • Jack: Pro-Wired Switchcraft® J11 Mono // OR Pure Tone® Mono Multi-Contact 1/4 in

Compatibility

Requires Four Conductor Pickups

MADE TO FIT

  • Gibson® Les Paul®
  • *MOST Epiphone® Les Paul®

*Always check layout guide below and fit info below.

NOT compatible with 90s Korean built Les Paul.
NOT compatible with three pickup Les Paul.

  • Always Check: Layout Guide
  • Hole Size: 3/8" (9.5mm) mounting holes
  • Knobs: Use Only US spec 24 spline knobs (Do NOT use metric / 'Import' style knobs
  • Pickups: Requires Four Conductor Pickups

DOES NOT FIT

  • Does NOT fit: Lefty, three pickup Les Paul®, or any other guitar or Les Paul® Copy.

Install

For install help and other resources please go to our Info Hub.

Shipping

Wohin wir liefern

Wir versenden derzeit direkt an:

  • Vereinigte Staaten
  • Australien
  • Großbritannien
  • Neuseeland
  • Hongkong
  • Island
  • Norwegen
  • Schweiz

Für andere Länder - siehe Internationale Händler

Vereinigte Staaten

Standardbestellungen

S hip aus Michigan, USA

Bitte beachten Sie, dass wir aufgrund der Art und Weise, wie Steuern im Bundesstaat erhoben werden, keine Bestellungen innerhalb des Bundesstaats Michigan versenden können. Wenn Sie in Michigan ansässig sind, bestellen Sie bitte über unseren Amazon-Shop hier, da dieser für die Erhebung der erforderlichen Umsatzsteuer eingerichtet ist. Wir entschuldigen uns für etwaige Unannehmlichkeiten.

Versandart: Arbeitstage: Preis (US$)
USPS-SENDUNGSVERFOLGUNG 3 - 5 6,99
FEDEX-HAUSLIEFERUNG 3 - 5 19,99
FEDEX EXPRESS SAVER 2 - 4 22,99
FEDEX EXPRESS SAVER 2 - 4 28,99

Pro-Wired Schlagbretter

Direktversand aus Christchurch, Neuseeland

Alle ObsidianWire™ Loaded Schlagbretter werden auf Bestellung gefertigt und direkt von unserem Standort in Christchurch, Neuseeland, aus versendet. Wir rechnen mit einer Bauzeit von 6 bis 12 Werktagen und informieren Sie, wenn es zu Verzögerungen kommt.

Rest der Welt

Direktversand aus Christchurch, Neuseeland

Wir versenden alle Bestellungen außerhalb der USA von unserem Standort in Christchurch, Neuseeland. Versandkosten und Lieferzeiten erhalten Sie an der Kasse.

Steuern und Zölle

Obsidian® zahlt KEINE Zölle, Steuern oder Zollabfertigungsgebühren.
Zölle und Steuern, die von Ihrer örtlichen Zollbehörde erhoben werden, liegen in Ihrer eigenen Verantwortung.
Wenn Sie außerhalb der USA leben, empfehlen wir Ihnen, vor der Bestellung die Höhe dieser Gebühren bei der Zollbehörde Ihres Landes zu prüfen.
Wenn Sie besorgt sind, bestellen Sie bei einem Händler in Ihrer Nähe
Internationale Händler

  • Solderless Install

    Super easy to install, and allow for solder-less pickup changes with Obsidian® Plug, Play & Enjoy connectors.

  • Pro-Grade Quality

    The absolute best guitar wiring upgrades, using custom specified parts and perfected techniques to ensure that your harness will be an upgrade for you and your guitar. Every time.

  • Greater Functionality

    Guitar electronics that will deliver a greater range of sounds from your pickups, with more switching options, and more dynamic setups to suit your guitar.

  • Improved Sound

    Guitar wiring that allows the full dynamic range of your pickups, and just as importantly, help find a harness that is matched to you.

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
d
daniel wilkinson (Asheville, US)
Swiss Army knife for tone chasing. + a note for installing

Realllllly helped bring out my neck pickup from muddy to an insane amount of tonal options. It’s like having a pedal on your guitar. Definitely recommend getting this before you change your pickups. You Can get crazy amounts of different tones on one guitar! Gone from barely playing my les Paul to the first guitar I grab. Was going to change my pickups soo glad I changed to this wiring instead.
One thing that I didn’t find in any reviews and I was a little worried about that I can’t believe hasn’t been addressed in any of the videos /reviews currently out there at the time of writing is how great the range of the tone pots are!! All the reviews have been about the volume. If you like to ride your tone nob for lots of different flavours like a LP JR. you’ll love this. The tone pots on this give you a great range and sweep the tone spectrum beautifully. Really is a super upgrade.
Lastly the other thing that’s not mentioned and will save you a lot of time on install is when you push down on the solder-less wiring button to insert the pickup or any wiring into it.
‘You’re not clamping down on the wire!’ When you push the button. You’re opening up the hole to insert wiring and it will clamp down on it when you release the button. So push down on the button before inserting the wire and then release the button to hold the wire in place. It will be a lot quicker and easier and save you the headache if you know this ahead of time.
