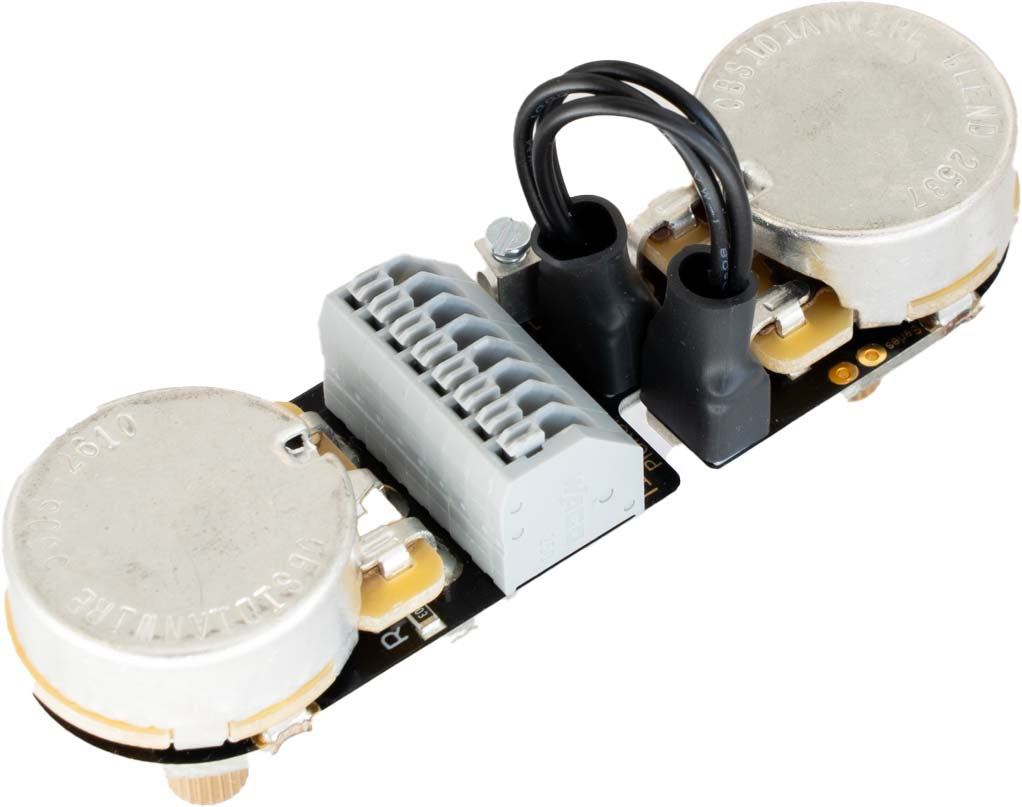

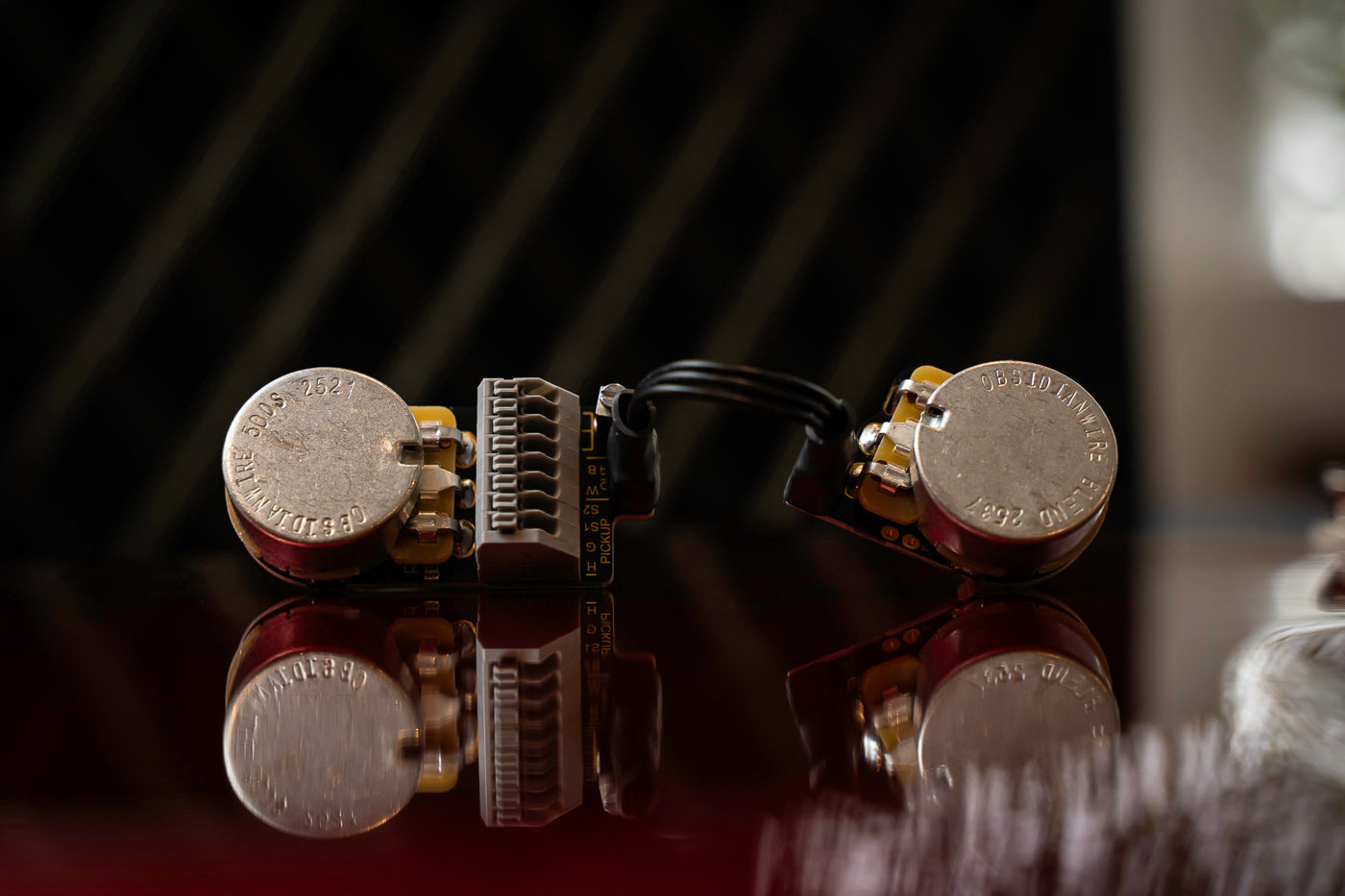

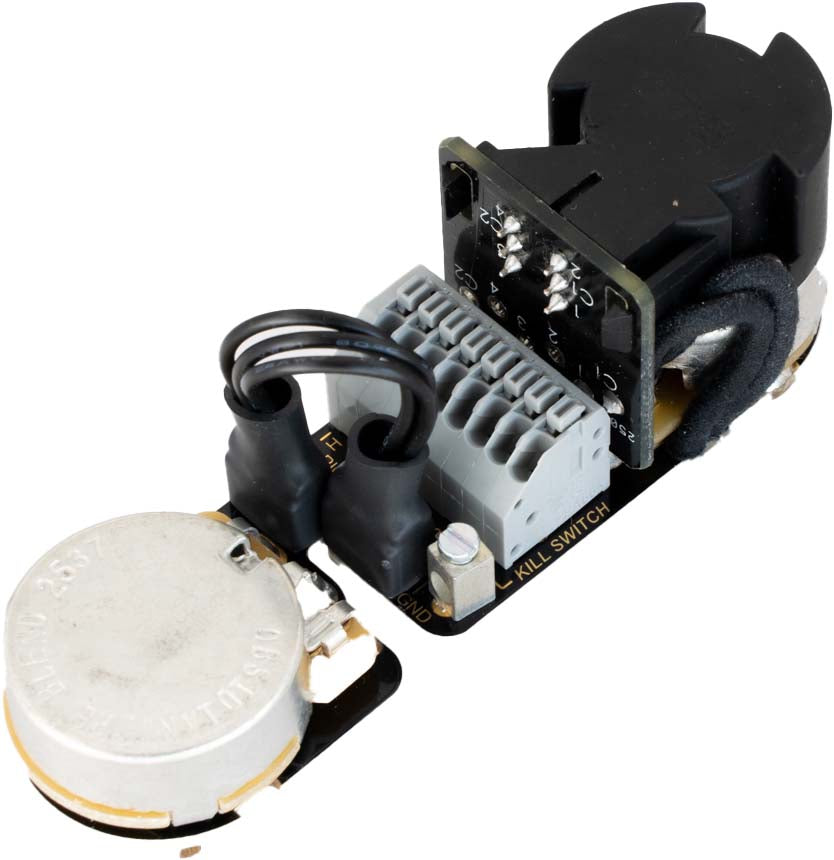

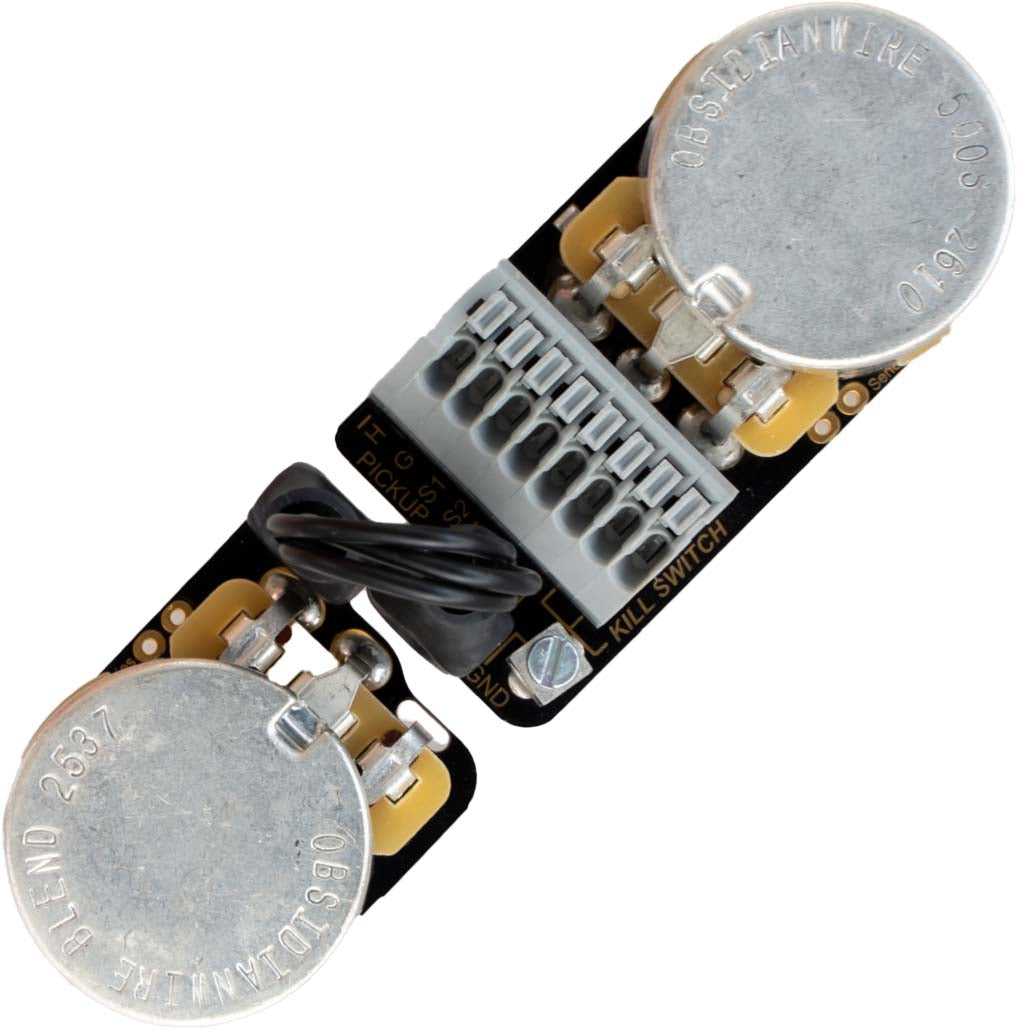

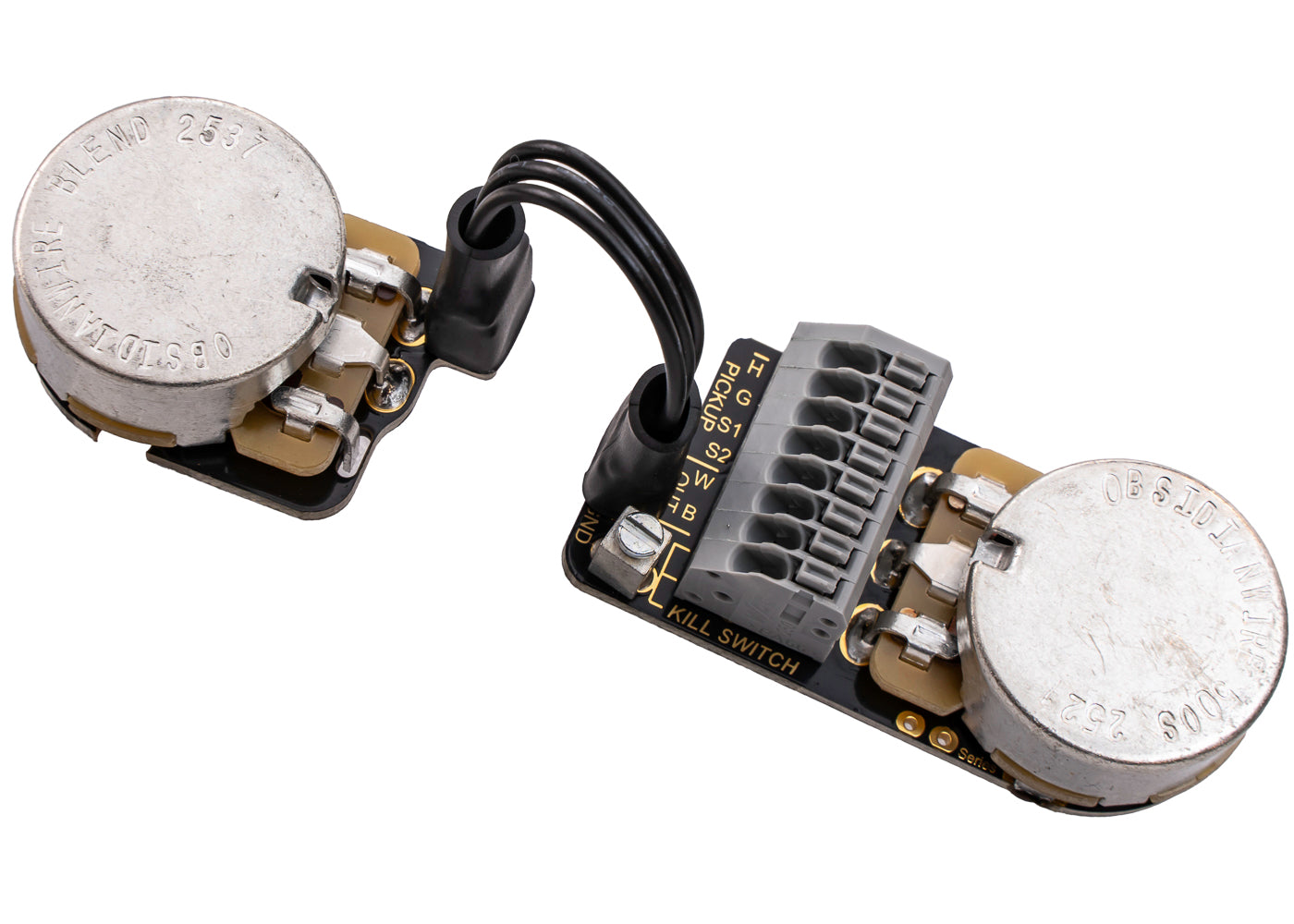

M1 | One Pickup Wiring Harness

This was my first attempt at a major guitar upgrade and wouldn't have tried it without this solderless kit. The wiring kit install was about 10 minutes once you have the harness positions and pick up wiring diagrams which are on the website.
My project was a 1998 Peavey Raptor Plus which was OK then, but needs some love now.
Aside from the wiring kit, Gotoh 38 tuners, Obsidian HSS overwound pick ups and a solderless jack kit.
The changes were immediate and noticeable. More sustain, punch, clarity, less hum & with the 7 way switch, you cant miss. If I ever mod another guitar, Obsidian will be my first choice.

Excellent jack. Holds the cable very securely and was a breeze to wire into the block on the M1. Came with everything I needed to replace the old jack and seat the new one nicely with the hardware included.

One pickup, one volume push/pull, one tone set up for a much needed upgrade for a little gold top Traveler Guitar. Went great. A violin peg head reamer made quick work of enlarging the holes to accommodate the standard size pots. So much easier than soldering. Sounds much better even with the stock humbucker and now easy to pickup swap with much less effort. Looking forward to trying out a few.

Works perfectly, my pickups are breathing like never before ;-)

Ordered a set for my revstar, they recommended long shafts, may want to try the pick guard mount, but the long shafts were just a hair too wide for the holes on a revstar element. That being said, I ended up taking it to my luthier to have it installed and he was able to get it working. The pots sound much better than the stock pots and the GFS equipment I was using previously. So they are worth it, just keep in mind if you are using something that isn't based on a Gibson or Fender style instrument, it may require a bit of extra work.

Simple to install, no problems.

When I first got this in, definitely was a bit intimidated. But with the ease of setup, information included with the Flex and some messaging between ObsidianWire staff, i was able to install it in a matter of minutes!!!

I went with the Short shaft with split coil option single volume pot. I have a 7 string that now homes this absolute versatile control!!

Definitely a must have if youre a hot rodder, or someone who is new to the world of mods. And the response times from the staff is insanely fast and absolutely friendly and helpful!! Definitely going to order another for a future project!

Fantastic product. I had an issue installing my first set (own fault) and the chap was very helpful.

Install was a breeze after that. Instructions are clear and the process is very easy to understand, even without electrical knowledge. Go slow, be methodical and pay attention to the instructions from OW and your pickup wiring guide and you’ll be golden.

The pots themselves have smooth, quick action. This is great for make fast adjustments on stage. PCBs are expertly soldered and wiring locations are arranged to encourage near install.

Overall, my electrics are looking extremely clean, and working as well as they possibly can.

Cheers.

Excellent product and great service. Highly recommended company with innovative products that are simple to install and great quality.

Just like every other Obsidian product I've purchased, it works exactly as described. Now they just need to come up with a solution for the skinny wires on a four conductor humbucker. Maybe some sort of pigtail adapter, since skinny wires are harder to work with vs vintage style.

This output jack arrived ready to be added to my guitar. The connection is tight and secure; an improvement over the standard single connection I had. This upgrade was worth it.

I purchased these for my best friend for Christmas. They seem to be great knobs, but I am left-handed and he is not so we'll have to wait until after Christmas to know more. Everything else I have purchased for myself from Obsidian Wire has been stellar.

Good, well put together. Working great.
